1. Product Description

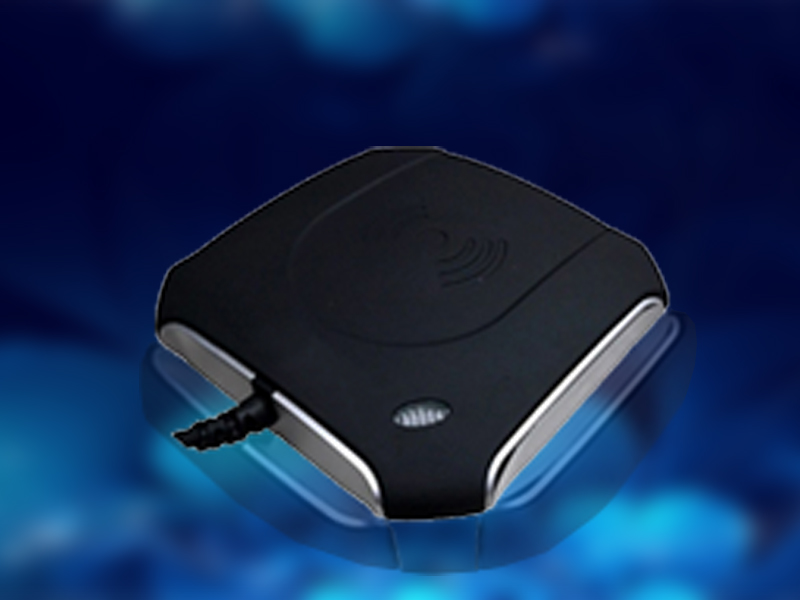

ED-302 IC card reader is a non-contact reader for reading and writing ISO14443A standard protocol cards. Connect to PC and related devices through TCP/IP interface, RS232 serial interface or USB port. Randomly provide driver development packages for various platforms, with accompanying demonstration programs that enable access to all functions of the RF card.
The ED-302 reader/writer is an essential front-end processing device for developing contactless card related application products and system integration. Its rich and complete interface communication functions are widely used in smart card management application systems such as industry and commerce, telecommunications, postal services, taxation, banking, insurance, medical care, and various charging, stored value, query, internet cafe charging, computer security management, etc.
2. Main features
(1) Non contact cards that support multiple international standard protocols; (2) Support non-contact CPU card operation;
(3) USB working mode, plug and play; (4) A buzzer and a dual color LED indicator light.
3. Technical indicators
| Technical Specifications: | |||
| Frequency band | 13.56Mhz | ||
| Baud rate | 9600~115200 bits/s (configurable, default 9600) | ||
| Read distance | 50-100mm (depending on label size) | ||
| Supported Protocols | ISO/IEC14443A | ISO/IEC 14443B | ISO/IEC 15693 |
| card support | Mifare One S50; | AT88RF020; | I-code 2; |
| (Non contact) | Mifare Ultralight; | 66CL160S; | TI RFID Tag-it HF-I, |
| Mifare OneS70 | SR176; | EM4135, | |
| MifarePro | SRIX4K | EM4034 | |
| communication interface | USB or HID | ||
| working power supply | USB power supply | ||
| Operating Temperature | -10℃ ~ 70℃ | ||
| Storage temperature | -20℃ ~ 80℃ | ||
| status display | Dual color LED light and buzzer | ||
| Baud rate | 9600~115200 bits/s (configurable, default 9600) | ||
| Read distance | 50-100mm (depending on label size) | ||
| size | 99mmx99mmx22mm | ||
4. Applicable industries
(1) Online banking, online shopping; (2) Recharge and balance inquiry of electronic wallet; (3) Network security; (4) Software Lock
