1. Product Description

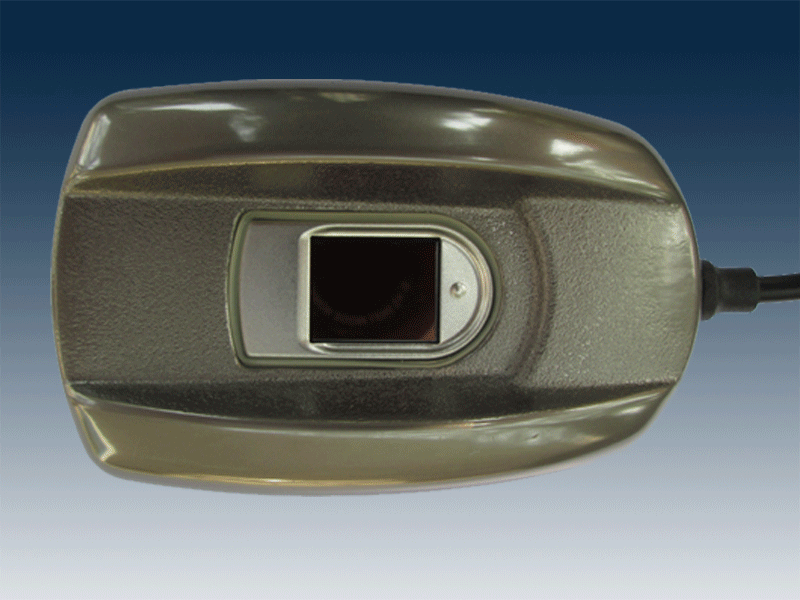

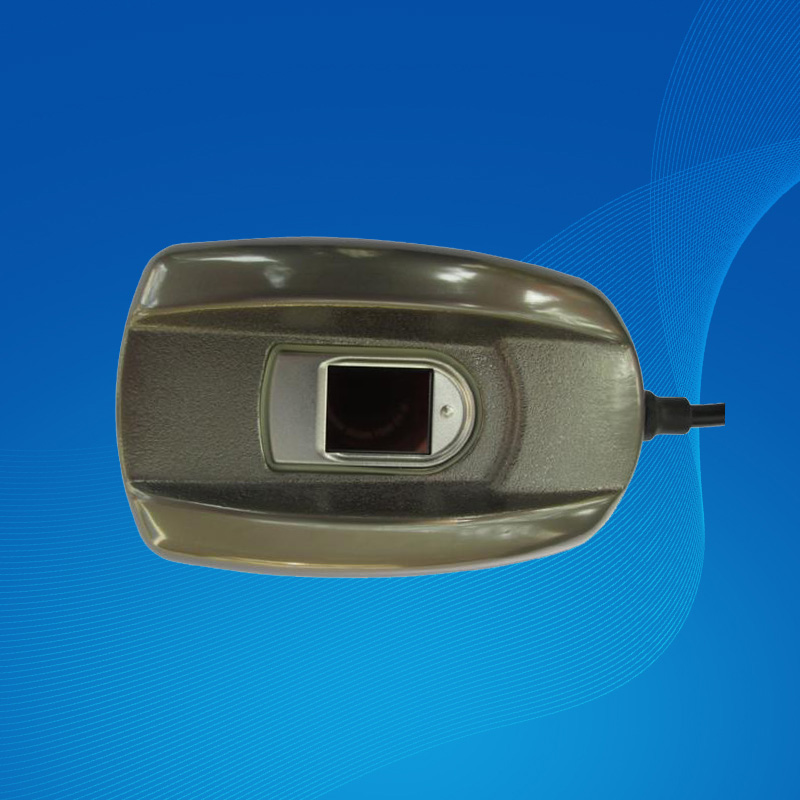

The FP-201 fingerprint scanner can flexibly adapt to the finger conditions at that time, with high recognition rates for dry fingers, wet fingers, shallow texture fingerprints, elderly fingers, and more, completely solving the problem of low recognition rates for unsatisfactory finger fingerprints.
2. Main features
Strong adaptability to various types of difficult finger fingerprints: able to flexibly adapt to the finger conditions at that time, whether it is dry fingers, wet fingers, shallow texture fingerprints, elderly fingers, etc., it has a high recognition rate, completely solving the problem of low recognition rate of unsatisfactory finger fingerprints
High recognition rate for dry finger fingerprints: especially suitable for dry fingers in northern winter
Strong anti-counterfeiting fingerprint capability, the recognition principle of fingerprint sensors only responds to human genuine skin, fundamentally eliminating the problem of artificial fingerprints.
High success rate of login fingerprint: When creating a login fingerprint, the success rate reaches 99.9%
Wide temperature range: suitable for areas that are particularly cold or extremely hot
Strong anti-static ability: very suitable for dry and prone to static electricity areas
3. Technical indicators
| Technical Specifications: |
| ● Detection of cortex: dermis layer |
| ● Ability to identify fake fingerprints: capable of identifying artificial fingerprints |
| ● Rejection rate FRR: 0.01% |
| ● False recognition rate FAR: 0.00001% |
| ● Average matching speed:<1 second |
| Fingerprint capacity: 100-1000 pieces |
| Anti static ability: IEC61000-4-2 standard 15KV |
| ● Operating temperature range: -20 ° C; C to 70 ° C; C |
| ● Working humidity: 0-95% |
| ● Working voltage: 5V |
| Image format: RAW |
| Image size: 256 * 288 |
| ● Collection area: 10.4mm * 14.4mm |
| Grayscale level: 8-bit (256 levels) |
| Image resolution: 500DPI |
| ● Interface: USB |
| Fingerprint engine: Built in high-performance fingerprint comparison engine |
| Fingerprint template size: 512BYTE |
4. Applicable industries
The fingerprint acquisition device is widely used in: public security fingerprint identification, access control fingerprint identification, bank teller fingerprint identification, social security system fingerprint identification, fingerprint attendance, fingerprint lock, computer and network security fingerprint identification, Internet shopping payment means and other occasions that need identification.
