1. Product Description

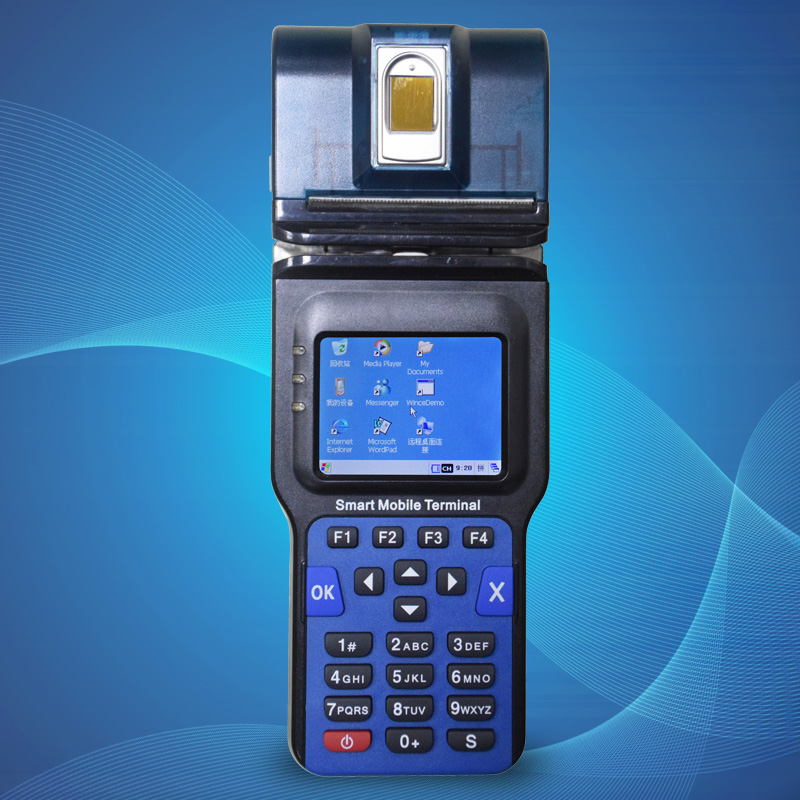

The EH-1218 Win CE system intelligent handheld terminal is a handheld POS machine that integrates multiple functions such as thermal printing output, standard magnetic stripe card reading, fingerprint acquisition verification, GPS satellite positioning, EtherNet networking, wireless communication, etc. And another feature that sets this machine apart from its traditional products is the adoption of QVGA display technology in the handheld POS industry, with an industrial grade exterior design concept that fully conforms to ergonomics.
2. Main features
(1) Win CE operating system multifunctional handheld device
(2) Support super strong interpretation of magnetic stripe cards
(3) Fingerprint recognition
(4) High speed thermal printing
3. Technical indicators
| Basic Parameters | ||||
| Model number | EH-1218 | |||
| operating system | Win CE 6.0 | |||
| processor | S3C6410X, ARM11 core, clock speed 667 MHz | |||
| memory | Flash：256MB； DDR：128MB； MicroSD (TF card): 2GB~32GB | |||
| display screen | 320× 240 TFT， 2.4 inches, 65K colors, supports touch | |||
| USB | USB 2.0，OTG，High speed | |||
| serial port | RS-232， Support high baud rate: 115200 bps, dedicated 18PIN conversion interface | |||
| keyboard | 22 physical buttons: including 10 numeric keys, 4 directional keys, 8 function keys, with LED backlight | |||
| input method | Supports English, Pinyin, handwriting input, and software keyboard | |||
| system language | Support customization in multiple languages | |||
| power supply | 2000mAh lithium polymer battery (7.4V nominal voltage), the motherboard is also equipped with a lithium-ion button battery to store the clock | |||
| buzzer | Center frequency 2.7KHz, adjustable frequency | |||
| LED indicator light | 1 charging indicator 2 customizable | |||
| printer | High speed thermal printing, speed 60mm/s, paper width 58mm, 384 dots per line, resolution: 8 dots/mm, 32 characters (12 * 24) per line, | |||
| Capable of printing printable ASCII characters, GB/T2312 character set, supporting printing of barcodes and other graphics | ||||
| size | 208(H)× 76(W)× 54(T)mm | |||
| weight | Approximately 430g (including battery) | |||
| Additional features (optional) | ||||
| CARD | (1 contact type large card, 3 PSAM cards)/4 PSAM cards, supporting ISO7816/EMV/PBOC protocol compliant contact type CPU cards, logic encryption cards, and storage card read/write | |||
| RFID | Operating frequency: 13.56MHz, supports reading and writing of contactless CPU cards, logic encryption cards, NFC devices, or high-frequency RFID that comply with ISO14443 (Type A/B)/ISO15693/ICODE I/ICODE II protocols, with a reading and writing distance of 0-5cm | |||
| Magnetic stripe card | Standard magnetic stripe card reading: can read three magnetic tracks, supports ISO7811, has super strong reading and decoding ability, super strong anti-interference ability, wide card swiping speed range | |||
| fingerprint | Image format: 256 * 288256 grayscale, 500DPI, False Rejection Rate (FRR):<0.01%, False Recognition Rate (FAR):<0.0001%, supports 1:1 comparison and 1:N search, 1:1000 search time<1 second | |||
| Ethernet | 10/100M adaptive network port, supporting IEEE802.3x full duplex flow control, supporting IP/TCP/UDP checksum generation, dedicated 18PIN conversion interface | |||
| speaker | Integrated audio output, 8 Ω/0.5W, supports MP3, WMA, etc | |||
| Wireless communication (optional) | ||||
| WIFI | SDIO interface, compliant with 802.11b/g standard, 2.4GHz, automatic rate adjustment, communication distance: 0-30m | |||
| Bluetooth | Working frequency: 2.4GHz ISM band, Bluetooth standard: 2.0 EDR, fully transparent transmission, communication distance: 0-10m | |||
| infrared | Support IrDA1.0 physical interface, baud rate adjustable from 110bps to 115200bps, communication distance: 0-0.3m | |||
| GPRS | GSM：850/900/1800/1900MHz（B2 B3 B5 B8）， Support short messages (text, PDU) with embedded TCP/IP and UDP protocol stacks | |||
| 3G Telecom/CDMA | 3G Telecom: CDMA&EVDO, 800MHz (BC0), supports short messages (text, PDU), embedded TCP/IP, UDP protocol stack | |||
| 3G China Unicom | WCDMA：850/1900/2100MHz（B1 B5 B8），GSM：850/900/1800/1900MHz（B2 B3 B5 B8）， Support short messages (text, PDU) with embedded TCP/IP and UDP protocol stacks | |||
| Usage environment | ||||
| temperature, humidity | Working temperature: -20 ℃~50 ℃; Relative humidity: 5% RH to 95% RH (no condensation) | |||
| Accessories and development tools | ||||
| accessories | Detachable lithium polymer battery, dedicated DC power adapter, USB data cable, serial communication cable, Ethernet data cable, lanyard, leather case | |||
| development tools | Development language: C, C# | |||
4. Applicable industries
(1) Mobile consumption
(2) Prepaid consumption
(3) Hospital nutrition ordering
(4) Membership Management
(5) Mobile inspection/law enforcement
