1. Product Description

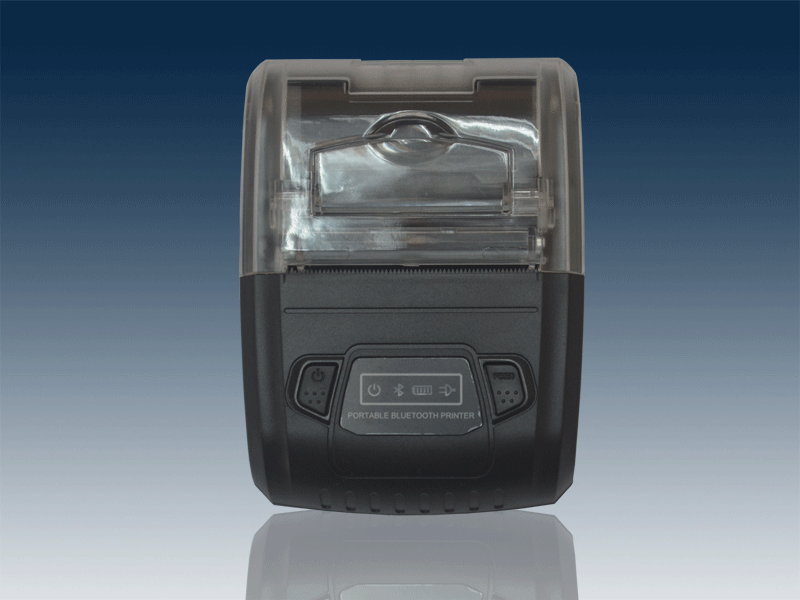

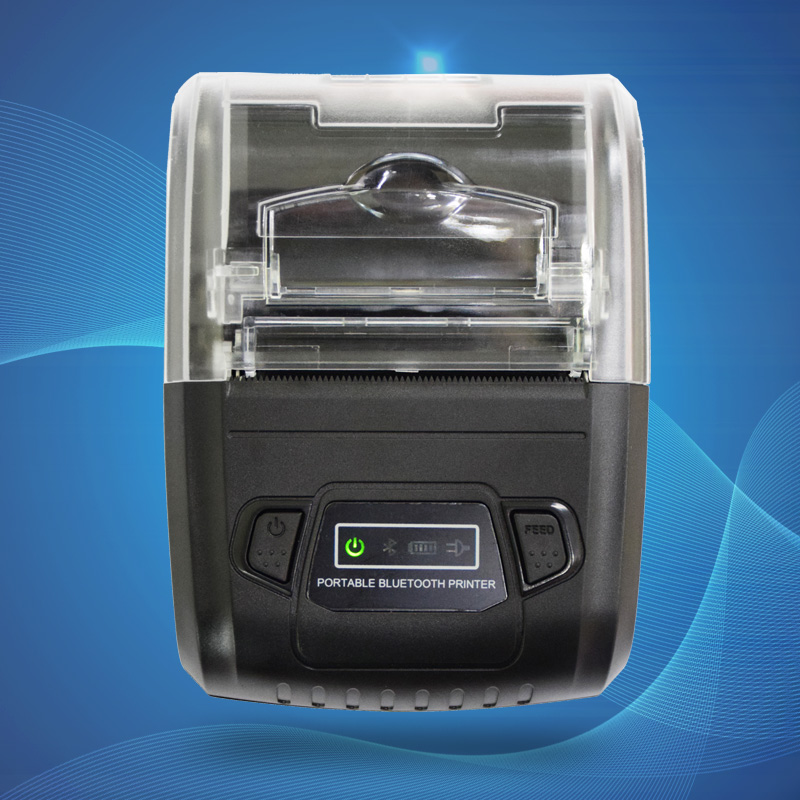

The PP-602 portable Bluetooth printer is a portable thermal printer product specially developed by Huiyi Nengda Co., Ltd. for mobile bill printing. It has the advantages of small size, light weight, good universality, easy docking, and simple use. The product supports Bluetooth connection printing and USB driver printing; A 1500mAh large capacity battery ensures operational needs; 40mm diameter large capacity paper bin reduces paper changing frequency.

2. Main features

3. Technical indicators

Product type: Bluetooth thermal printer

Resolution: 203DPI

Printing method: Thermal sensitive

Printing speed: 3-5 inches/second

Large width: 48mm

Operation method: Tear off

Large length: 150mm

Communication interface: Bluetooth 2.0/USB (supports customization 4.0)

Cache: 4KB

Font library: GBK (8MB)

Paper roll diameter: 40mm

English: ASCII8× 16/12× twenty-four

Chinese: 24× 24/12× 12 dot matrix, characters can be enlarged by 2-8 times.

Graphic processing: Supports printing of point images with different densities and downloaded graphics, with a large image width of 376 pixels

Display panel: Three sets of LED indicator lights

Control panel: power supply FEED

Product size: 115 * 84 * 46mm

Product weight: approximately 340g

Working voltage: DC7.4V, 3.0A

Input voltage: 9V

Working temperature: -10~50 ℃

Working humidity: 20-80% RH (non condensing)

Storage temperature: -40-55 ℃

Storage humidity: ≤ 90% RH (non condensing)

Instruction set: ESC/POS

Black Label Detection: Supports

Battery: 1500mAh/7.4V, can print up to 30m on a single charge, with a standby time of up to 30 days

Charger: 9V/1A, supports direct external power printing, optional car charging adapter (12V)

4. Applicable industries

The main scope of application includes: mobile police systems, tobacco distribution systems, utility meter reading systems, mobile office/logistics systems, portable instruments/detection equipment supporting equipment.
